Multiscreen
1%, 5%, 10%

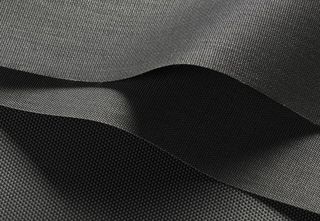

Fabric properties
| 1% | 5% | 10% | |
|
|
Semi transparent | ||
|
|
64% PVC, 36% Glass fibre | ||
|
|
440 g/m² | 410 g/m² | 350 g/m² |
|
|
0.55 mm | 0.55 mm | 0.47 mm |
|
|
245 cm | 315 cm | 315 cm |
 | 250 cm | 8.9 cm, 12.7 cm, 250 cm, 320 cm | 250 cm, 320 cm |
Features / Technical properties
7-8
Flame retardant
Optimised for workstations
Various openness factors
Applicable in humid areas
Digital printing
Greenguard
Special colours from 10’000 m
Weldable
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Multiscreen 1% | ||||||
| Colour |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Colour 0702 | Tv(%) 11.8 | Ts(%) 14.0 | Rs(%) 47.0 | As(%) 39.0 | Fc() 0.64 | gtot() 0.46 |
| Colour 0730 | Tv(%) 5.6 | Ts(%) 6.0 | Rs(%) 25.0 | As(%) 69.0 | Fc() 0.79 | gtot() 0.57 |
| Colour 3001 | Tv(%) 2.8 | Ts(%) 3.0 | Rs(%) 9.0 | As(%) 88.0 | Fc() 0.89 | gtot() 0.64 |
| Multiscreen 5% | ||||||
| Colour |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Colour 0202 | Tv(%) 20.6 | Ts(%) 21.0 | Rs(%) 69.0 | As(%) 10.0 | Fc() 0.50 | gtot() 0.36 |
| Colour 0207 | Tv(%) 15.8 | Ts(%) 17.0 | Rs(%) 54.0 | As(%) 29.0 | Fc() 0.60 | gtot() 0.42 |
| Colour 0220 | Tv(%) 19.1 | Ts(%) 22.0 | Rs(%) 62.0 | As(%) 16.0 | Fc() 0.54 | gtot() 0.39 |
| Colour 0707 | Tv(%) 12.7 | Ts(%) 15.0 | Rs(%) 37.0 | As(%) 48.0 | Fc() 0.71 | gtot() 0.50 |
| Colour 3001 | Tv(%) 5.6 | Ts(%) 6.0 | Rs(%) 10.0 | As(%) 84.0 | Fc() 0.89 | gtot() 0.62 |
| Colour 3006 | Tv(%) 5.3 | Ts(%) 5.0 | Rs(%) 7.0 | As(%) 88.0 | Fc() 0.89 | gtot() 0.63 |
| Colour 3030 | Tv(%) 5.4 | Ts(%) 6.0 | Rs(%) 5.0 | As(%) 89.0 | Fc() 0.89 | gtot() 0.64 |
| Multiscreen 10% | ||||||
| Colour |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Colour 0202 | Tv(%) 28.7 | Ts(%) 29.0 | Rs(%) 63.0 | As(%) 8.0 | Fc() 0.54 | gtot() 0.39 |
| Colour 0207 | Tv(%) 23.2 | Ts(%) 25.0 | Rs(%) 53.0 | As(%) 22.0 | Fc() 0.61 | gtot() 0.44 |
| Colour 0220 | Tv(%) 26.4 | Ts(%) 29.0 | Rs(%) 58.0 | As(%) 13.0 | Fc() 0.57 | gtot() 0.41 |
| Colour 0707 | Tv(%) 18.3 | Ts(%) 21.0 | Rs(%) 34.0 | As(%) 45.0 | Fc() 0.74 | gtot() 0.53 |
| Colour 3001 | Tv(%) 10.2 | Ts(%) 10.0 | Rs(%) 10.0 | As(%) 80.0 | Fc() 0.89 | gtot() 0.64 |
| Colour 3006 | Tv(%) 9.3 | Ts(%) 10.0 | Rs(%) 6.0 | As(%) 84.0 | Fc() 0.89 | gtot() 0.64 |
| Colour 3030 | Tv(%) 10.8 | Ts(%) 10.0 | Rs(%) 5.0 | As(%) 85.0 | Fc() 0.89 | gtot() 0.64 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
On request:
C-s3,d0 (EN 13501-1)
SN 198898 10%
NFPA 701
Class 1 (UNI 9176/77) 5-10%
B1 (DIN 4102-1)
IMO
On request:
Greenguard

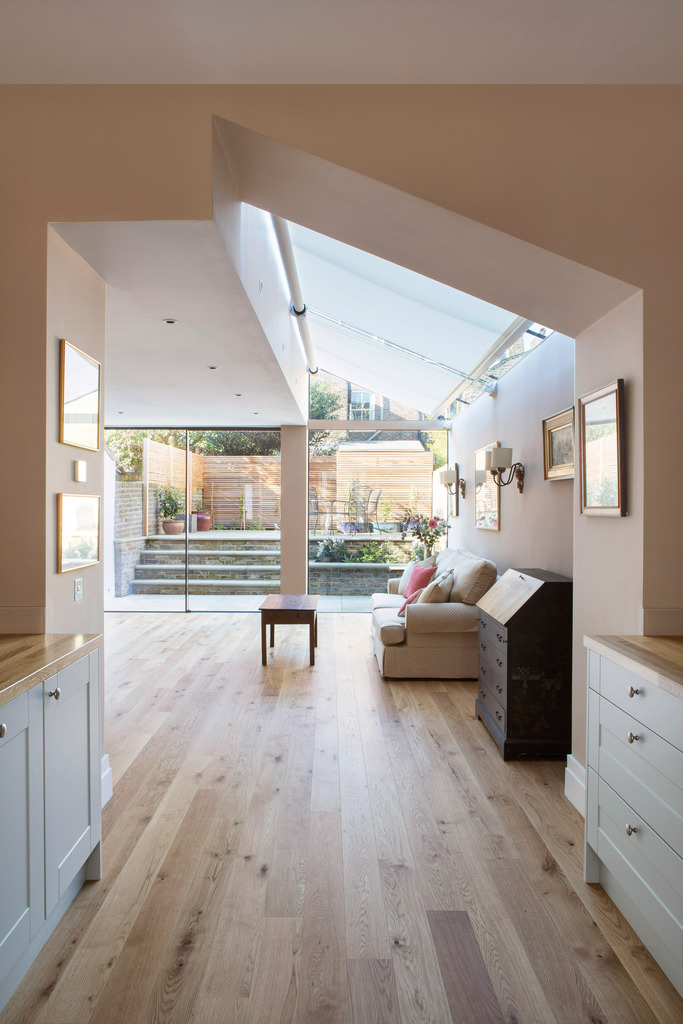

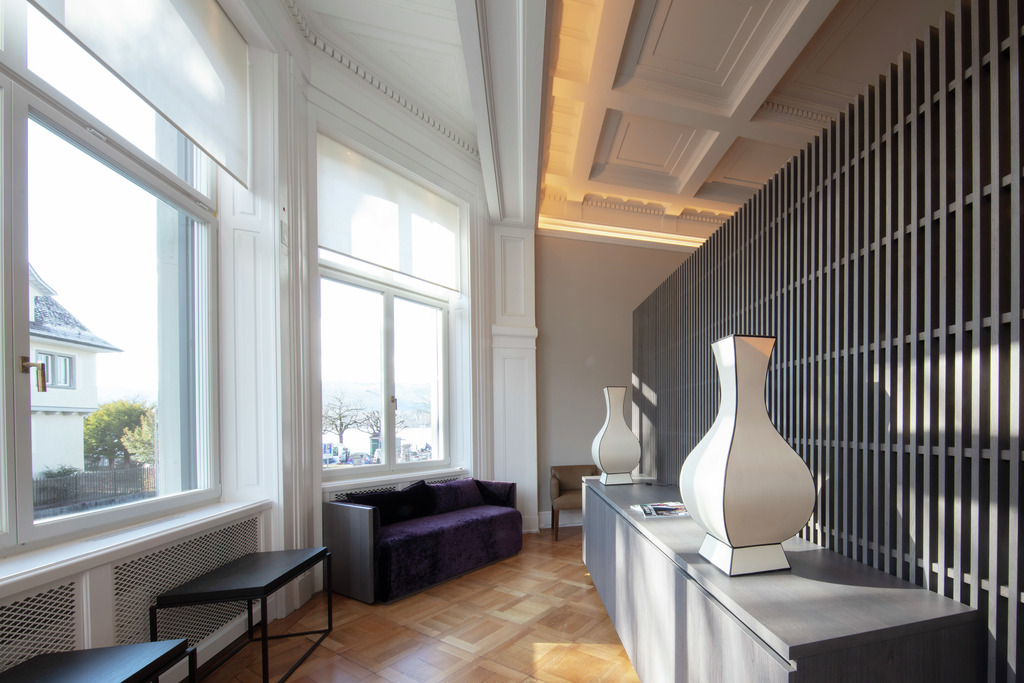

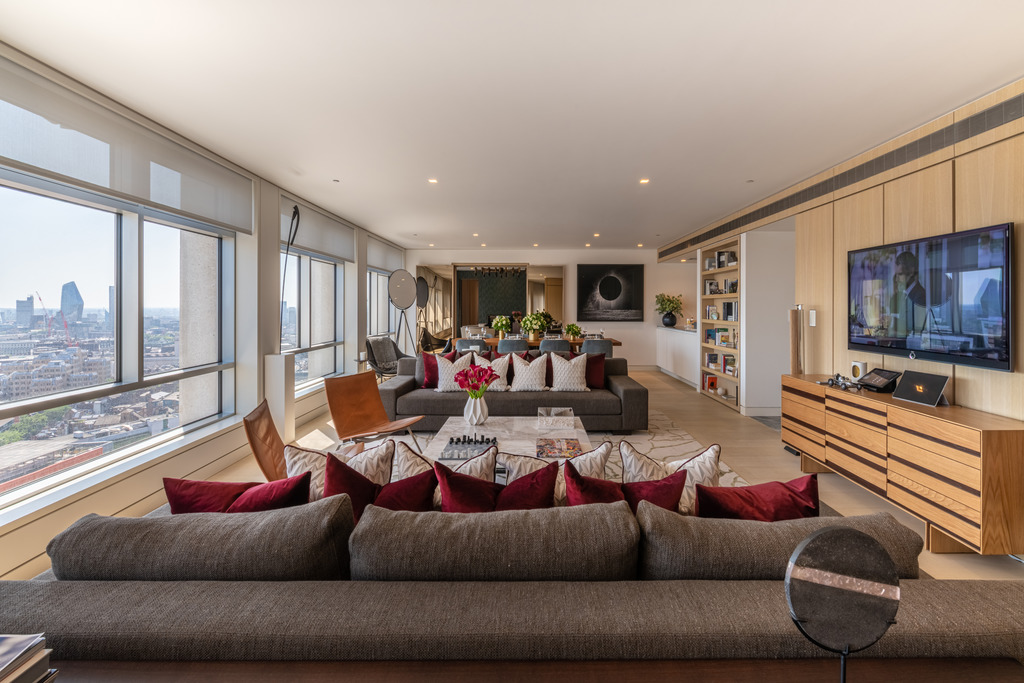

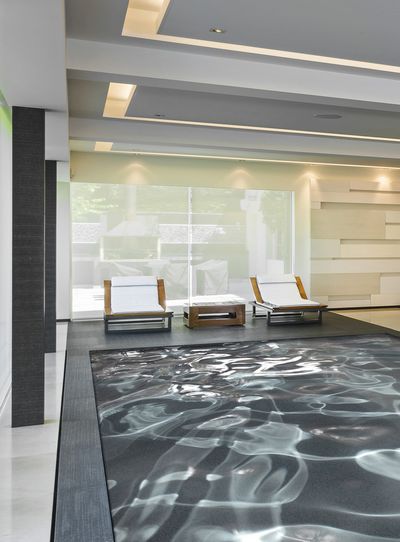

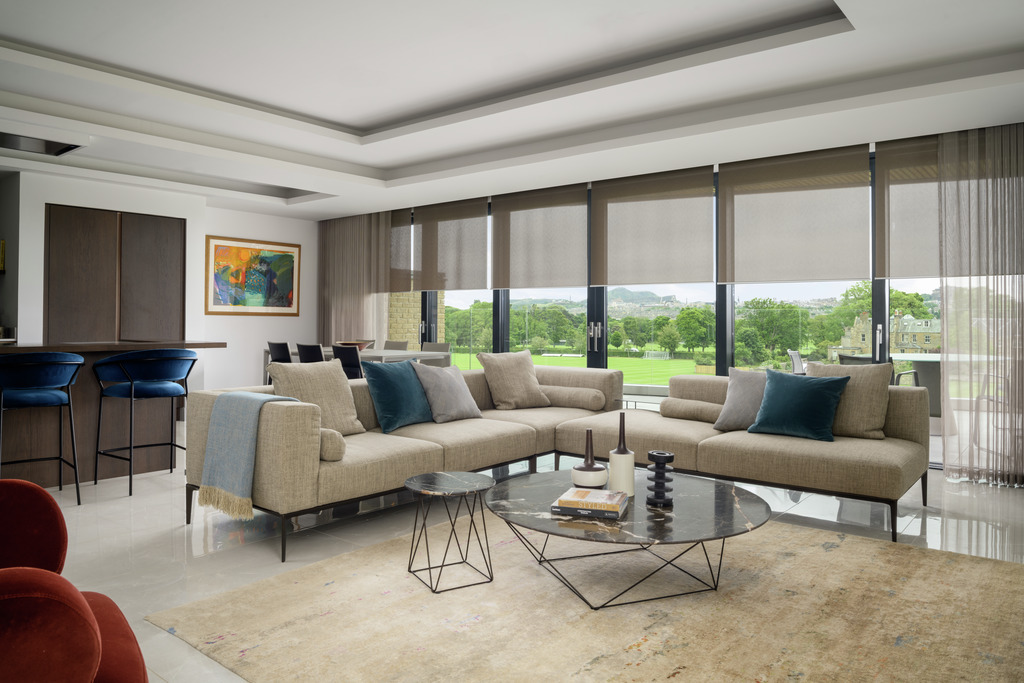

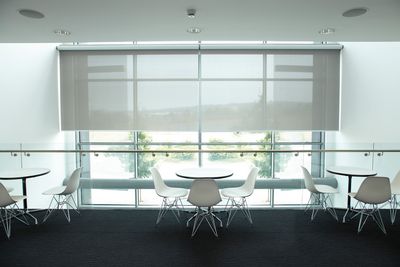

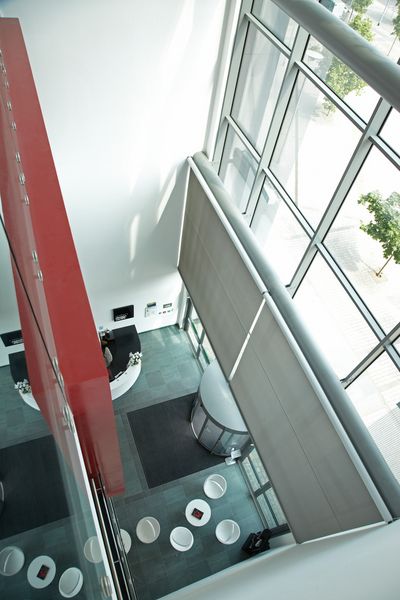

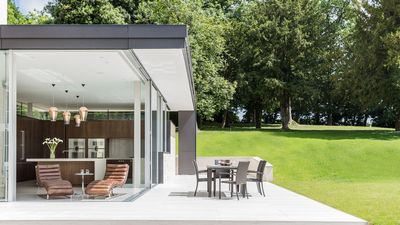

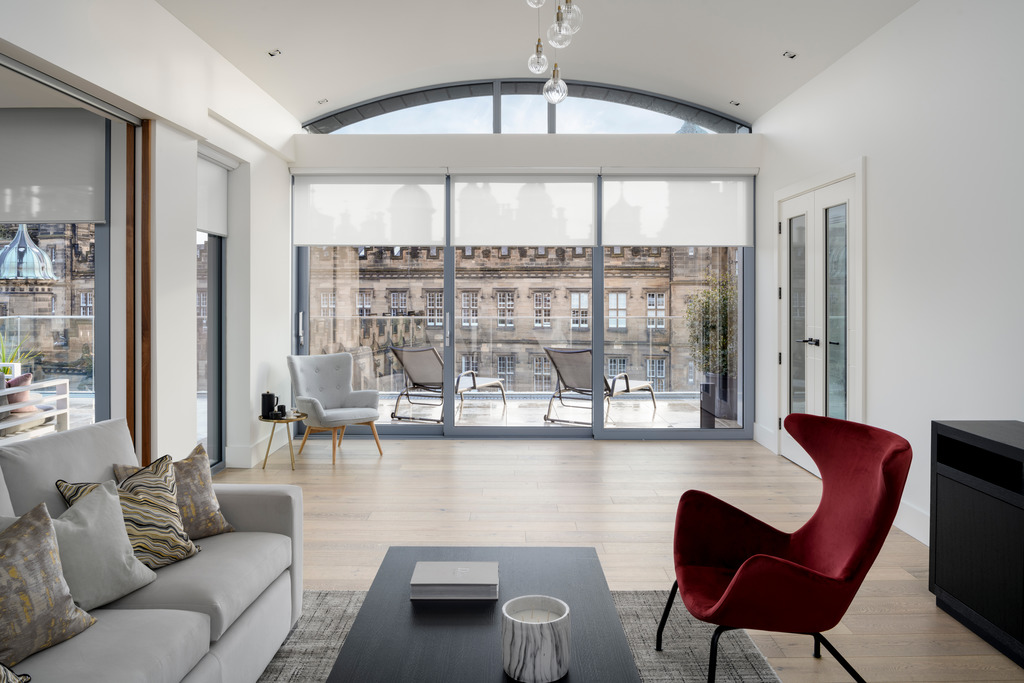

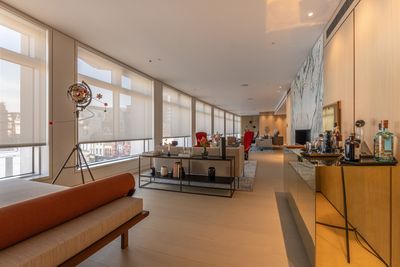

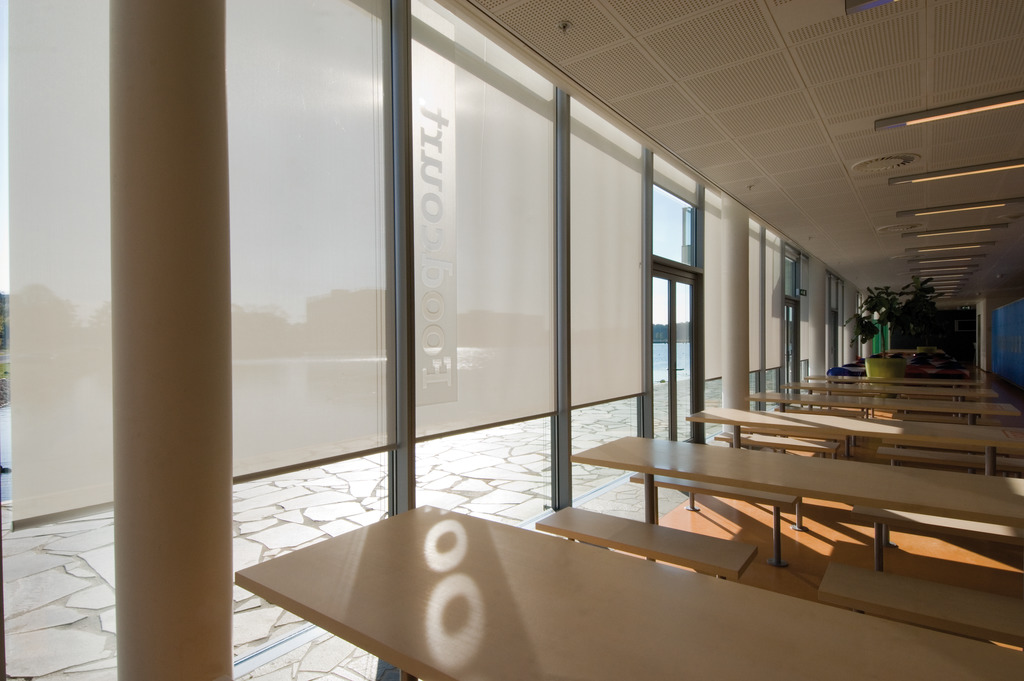

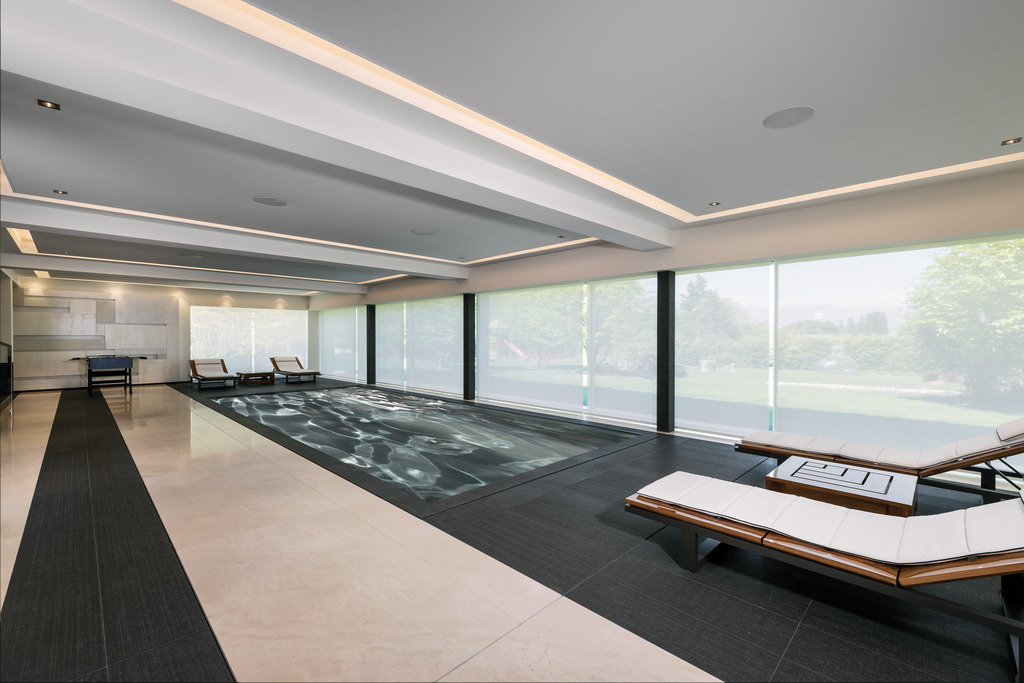

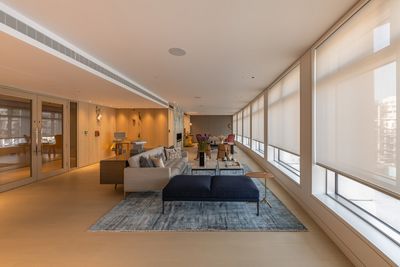

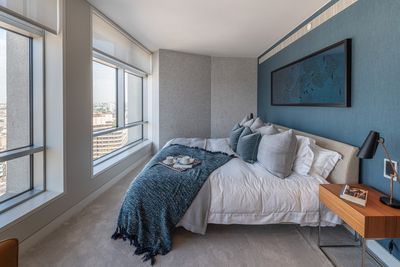

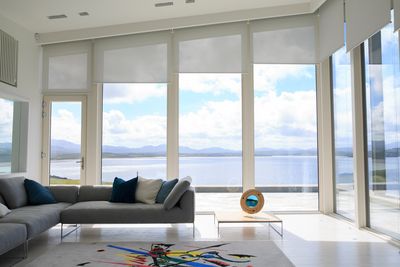

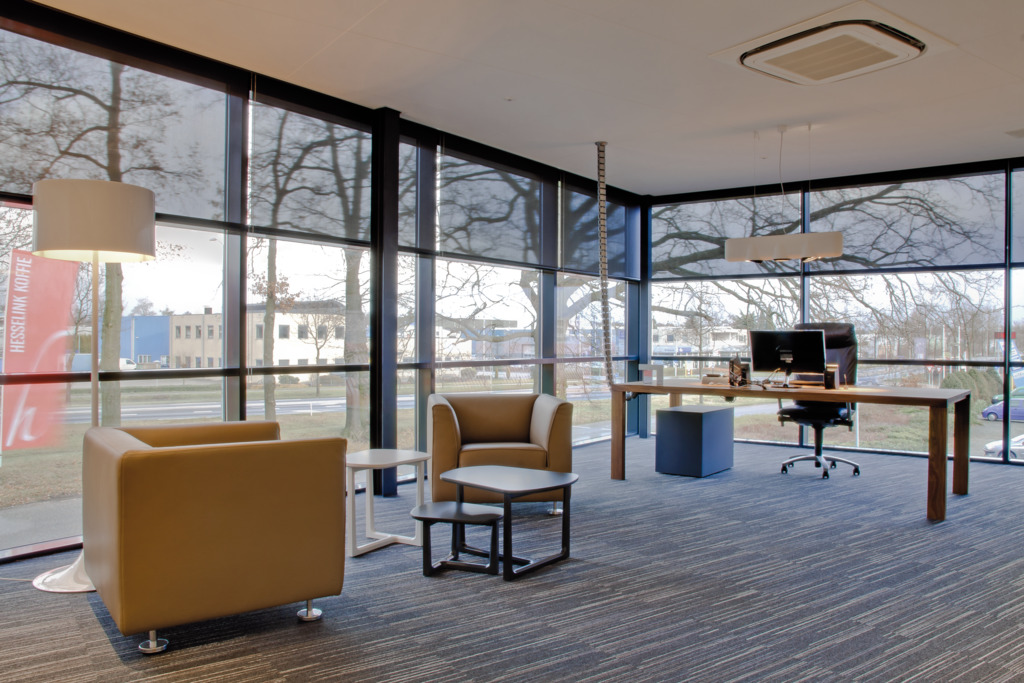

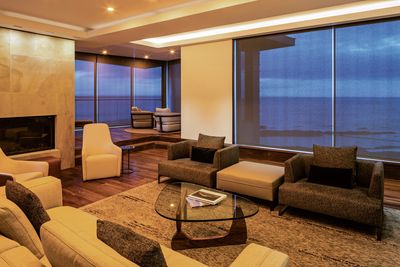

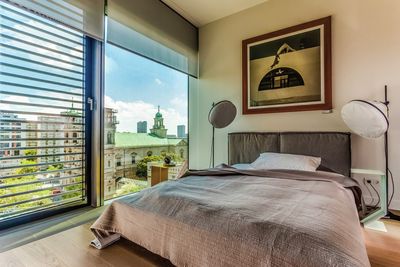

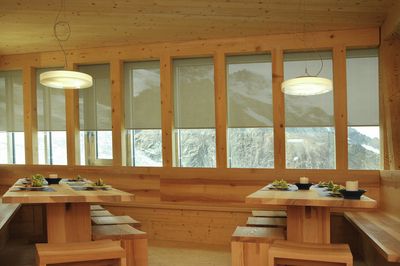

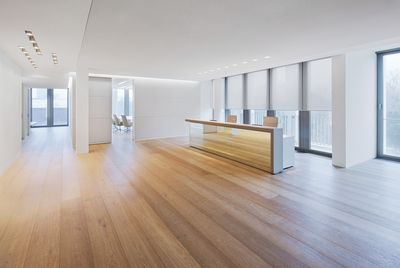

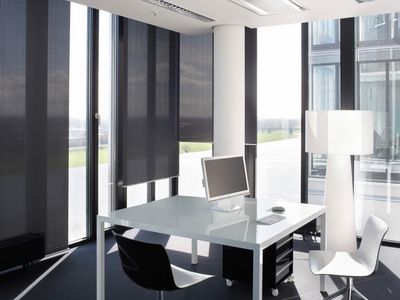

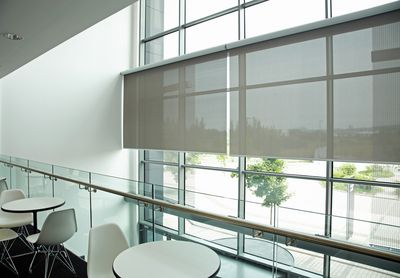

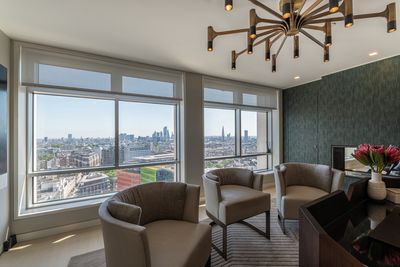

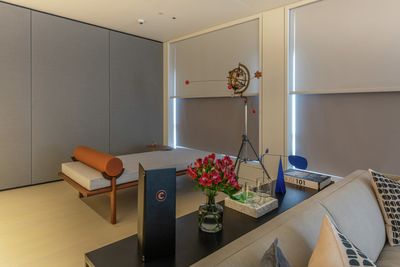

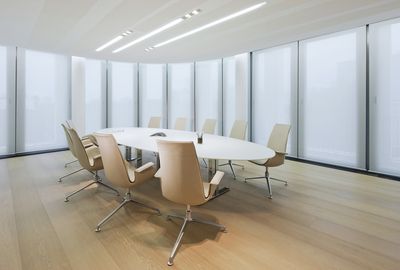

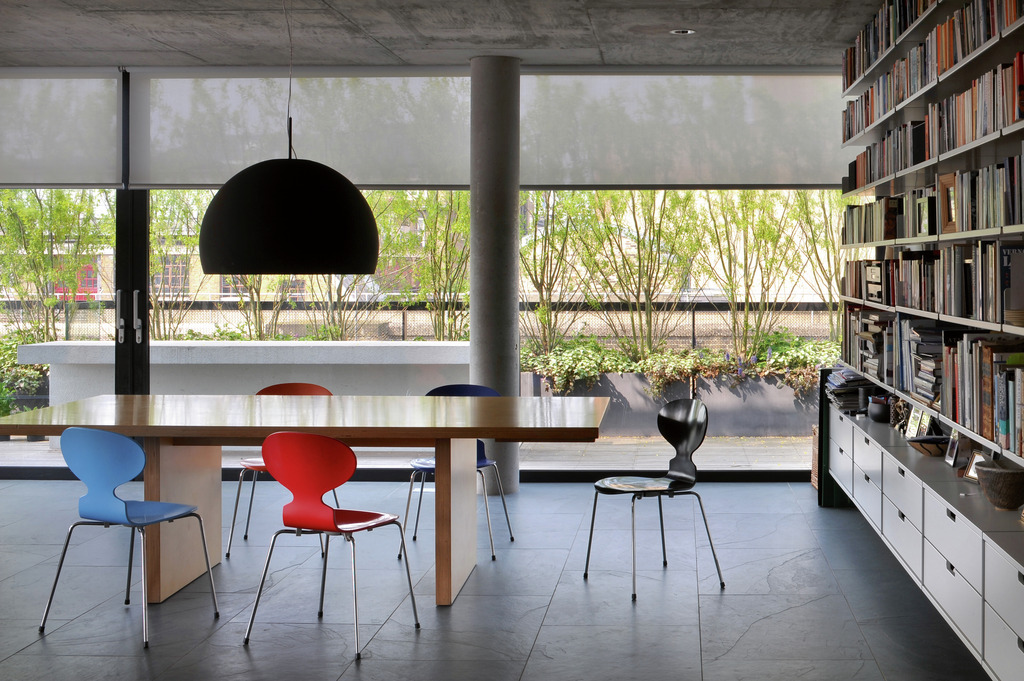

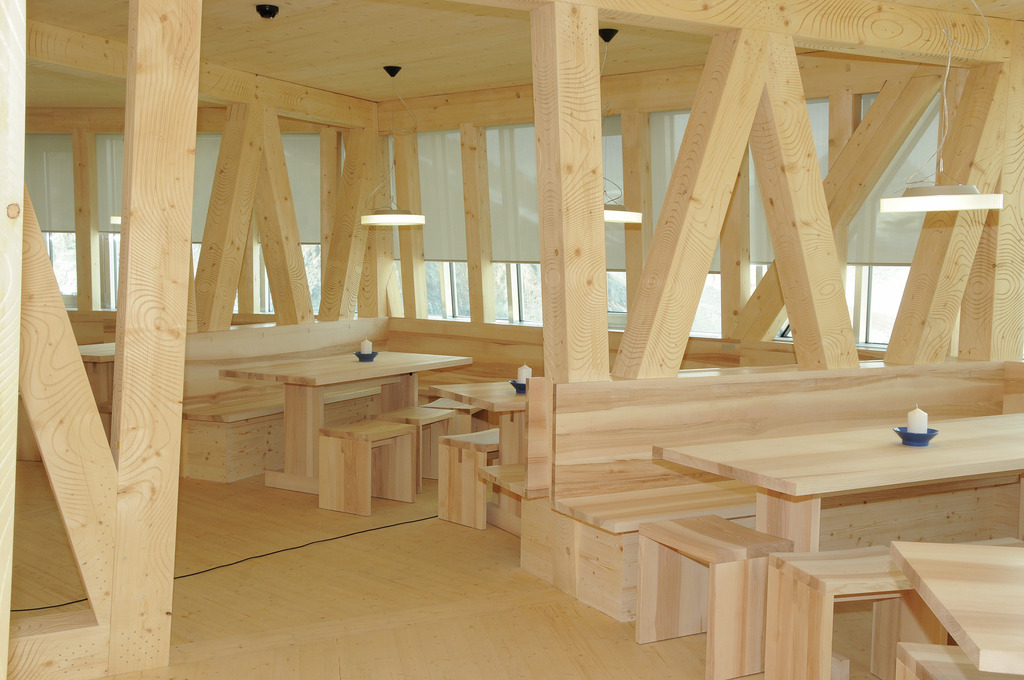

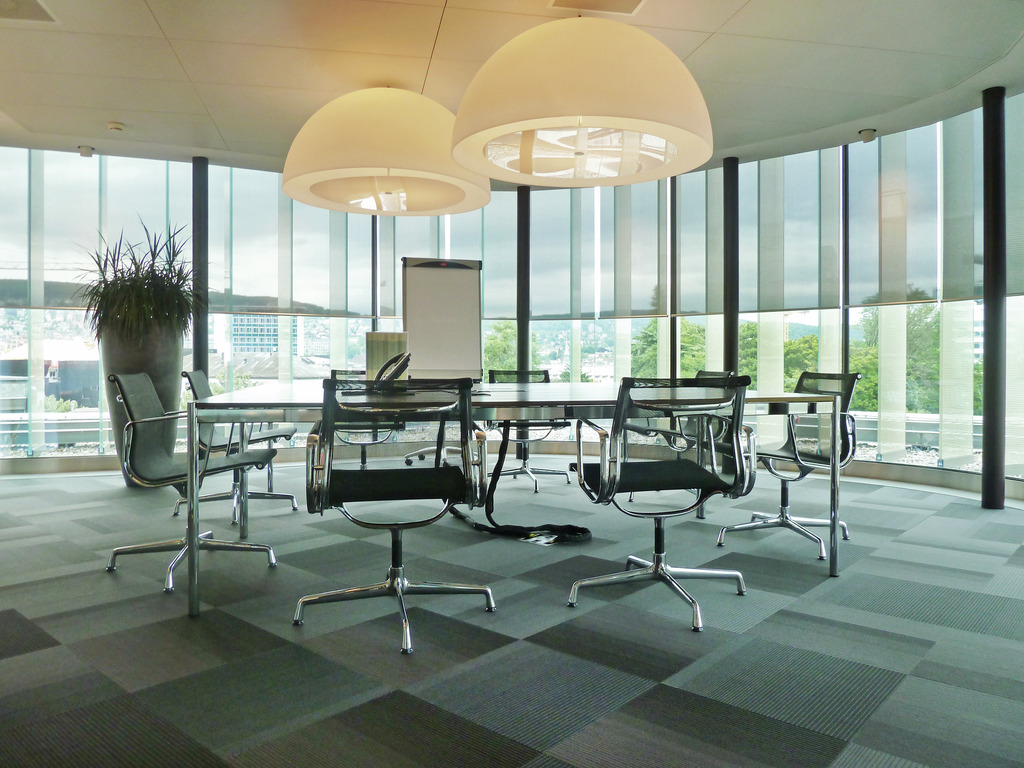

Inspiration
