Versascreen
1%, 2%, 5%, 10%

1%
001
1%
003
1%
401
1%
901
2%
001
2%
003
2%
401
2%
901
5%
001
5%
003
5%
401
5%
901
10%
001
10%
003
10%
401
10%
901

Applications




5%
5%, 10%

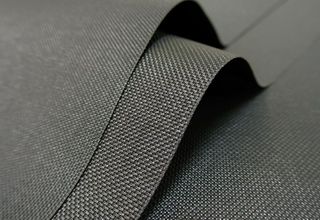

Fabric properties

1% 2% 5% 10%
Semi transparent
25% Polyester, 75% PVC
520 g/m² 510 g/m² 420 g/m² 400 g/m²
0.70 mm 0.63 mm 0.55 mm 0.55 mm
295 cm
8.9 cm, 12.7 cm, 250 cm, 300 cm

Features / Technical properties

8
Flame retardant
Optimised for workstations
Various openness factors
Antimicrobial (ASTM - SGS)
Applicable in humid areas
Oeko-Tex, Greenguard
Special colours from 800 m
Weldable

Washing instructions

Oeko-Tex Greenguard Fabric tested for increased mould resistance

Optical and solar coefficients (± 5%, DIN EN 410)

Versascreen 1%
Colour
Colour 001 Tv(%) 11.0 Ts(%) 15.0 Rs(%) 67.0 As(%) 18.0 Fc() 0.50 gtot() 0.36
Colour 003 Tv(%) 4.5 Ts(%) 7.0 Rs(%) 51.0 As(%) 42.0 Fc() 0.60 gtot() 0.43
Colour 401 Tv(%) 0.7 Ts(%) 3.0 Rs(%) 17.0 As(%) 80.0 Fc() 0.81 gtot() 0.58
Colour 901 Tv(%) 0.1 Ts(%) 0.5 Rs(%) 4.0 As(%) 95.5 Fc() 0.89 gtot() 0.64
Versascreen 2%
Colour
Colour 001 Tv(%) 12.0 Ts(%) 16.0 Rs(%) 72.0 As(%) 12.0 Fc() 0.47 gtot() 0.34
Colour 003 Tv(%) 5.3 Ts(%) 9.0 Rs(%) 50.0 As(%) 41.0 Fc() 0.61 gtot() 0.44
Colour 401 Tv(%) 1.1 Ts(%) 3.0 Rs(%) 17.0 As(%) 80.0 Fc() 0.81 gtot() 0.58
Colour 901 Tv(%) 0.8 Ts(%) 1.0 Rs(%) 4.0 As(%) 95.0 Fc() 0.89 gtot() 0.64
Versascreen 5%
Colour
Colour 001 Tv(%) 12.0 Ts(%) 20.0 Rs(%) 66.0 As(%) 14.0 Fc() 0.51 gtot() 0.37
Colour 003 Tv(%) 9.0 Ts(%) 12.0 Rs(%) 44.0 As(%) 44.0 Fc() 0.65 gtot() 0.47
Colour 401 Tv(%) 6.0 Ts(%) 5.0 Rs(%) 6.0 As(%) 89.0 Fc() 0.88 gtot() 0.64
Colour 901 Tv(%) 6.0 Ts(%) 5.0 Rs(%) 5.0 As(%) 90.0 Fc() 0.89 gtot() 0.64
Versascreen 10%
Colour
Colour 001 Tv(%) 20.0 Ts(%) 24.0 Rs(%) 63.0 As(%) 13.0 Fc() 0.54 gtot() 0.39
Colour 003 Tv(%) 15.0 Ts(%) 19.0 Rs(%) 45.0 As(%) 36.0 Fc() 0.65 gtot() 0.47
Colour 401 Tv(%) 9.0 Ts(%) 11.0 Rs(%) 17.0 As(%) 72.0 Fc() 0.82 gtot() 0.59
Colour 901 Tv(%) 9.0 Ts(%) 9.0 Rs(%) 4.0 As(%) 87.0 Fc() 0.90 gtot() 0.65
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Data Sheet

Downloads

Fire Protection
C-s2,d0 (EN 13501-1) 5%
M1 (NF P 92-503/5/7) 5%
Type B (BS 5867-2)
B1 (DIN 4102-1)
On request:
NFPA 701
Sustainability
Oeko-Tex
On request:
Greenguard
ASTM
